You’ve probably seen it in a documentary, a manufacturing plant, or even a gold-buying shop: someone points a gun-like device at a rock, a piece of metal, or an ancient coin, and within seconds, a screen displays a list of ingredients. It seems like magic, but it’s actually sophisticated science in action.

The technology is called X-ray Fluorescence, or XRF. While the name might sound complex, the basic principle is surprisingly straightforward. Let's break down how these remarkable machines unlock the elemental secrets of any material.

The Core Idea: Every Element Has a Unique Fingerprint

Imagine you could make an element "sing" its own unique note. By listening to that note, you could identify exactly which element it is. This is essentially what an XRF analyzer does—but instead of sound, it uses light.

More precisely, every element in the periodic table (from magnesium to uranium) emits a unique set of X-ray light when it's excited in just the right way. This unique light signature is the element's "fingerprint." An XRF machine's job is to excite the atoms and then read these fingerprints.

The Three-Step Process of XRF Analysis

Here’s a simple, step-by-step look at what happens inside the machine during that quick analysis.

Step 1: The Excitation

The XRF gun contains a small X-ray tube. When you pull the trigger, it fires a beam of safe, high-energy X-rays at the sample. Think of these incoming X-rays as tiny packets of energy.

When these energy packets hit the atoms in your sample, they knock out electrons from their stable inner orbits. This leaves the atoms in an unstable, "excited" state.

Step 2: The Relaxation

Nature abhors a vacuum, and atoms crave stability. Almost instantly, an electron from an outer orbit drops in to fill the empty space in the inner orbit.

Step 3: The Fingerprint (The Fluorescence)

Here’s the crucial part: when that outer electron drops into the inner orbit, it has to release its excess energy. It does this by emitting a secondary X-ray. The key is that the energy of this emitted X-ray is unique to the specific element it came from.

This release of secondary X-rays is the "Fluorescence" in X-ray Fluorescence.

The Detector: The "Elemental Translator"

The front of the XRF gun isn't just an X-ray source; it also contains a sophisticated detector. This detector acts as a universal translator. It catches all the secondary X-rays coming from the sample and measures their precise energy levels.

The onboard computer then takes this energy data and matches it against a built-in library of known elemental fingerprints. In a matter of seconds, it compiles a list: "This much iron, this much copper, this much gold, and a trace of silver." The result is a complete breakdown of the material's elemental composition, displayed right on the screen.

Beyond the Basics: What Makes This So Powerful?

It's (Mostly) Non-Destructive: The process doesn't destroy, burn, or dissolve the sample. The object being tested remains completely intact, making it perfect for analyzing valuable artifacts, finished products, or delicate components.

Incredibly Fast: What used to take hours in a lab now takes seconds on-site.

Versatile: XRF can analyze solids, liquids, and powders, from massive pieces of alloy to a speck of soil dust.

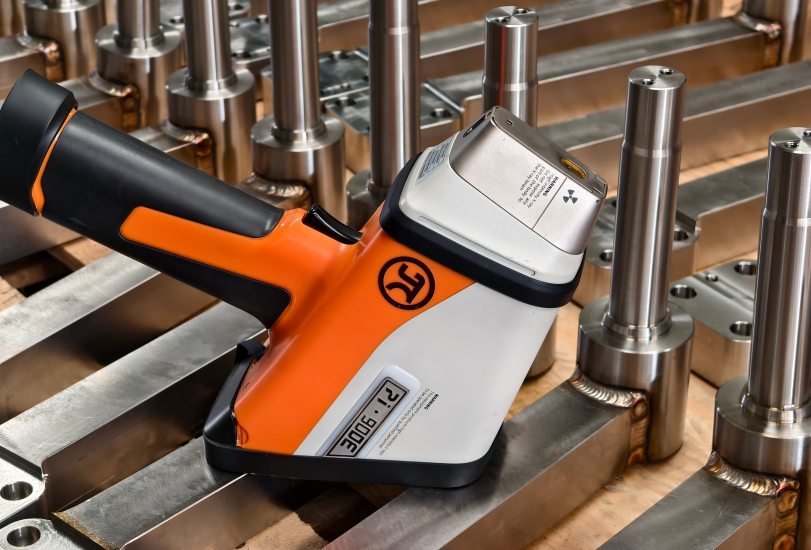

Bring laboratory-grade precision to any job site with the Pi900E XRF Spectrometer. Confidently make critical decisions based on precise, on-the-spot analysis of elements from Magnesium to Uranium. Maximize profitability in scrap sorting, enforce stringent quality control, and perform rapid environmental screening. Built to withstand the most demanding environments, its intuitive touchscreen and instant Wi-Fi reporting deliver actionable insights directly from the field in seconds.

Terras EulerX900 Handheld Alloy Analyzer

Where Do We See XRF in Action?

This powerful technology is used across countless industries:

Scrap Metal Recycling: Instantly identifying alloy grades for accurate sorting and pricing.

Mining & Geology: Analyzing ore grades in the field to guide exploration and drilling.

Quality Control: Verifying the material composition of incoming raw materials or finished goods to prevent costly mix-ups.

Environmental Testing: Screening soil for lead paint or toys for hazardous substances like cadmium and mercury.

Art & Archaeology: Authenticating ancient coins and artifacts without causing any damage.

Conclusion: Not Magic, Just Brilliant Science

So, the next time you see someone using an XRF analyzer, you'll know the simple science at work. It’s not a magical black box; it’s a brilliant application of fundamental physics. By exciting atoms and listening to the unique "song" they sing in return, XRF machines give us the power to see exactly what our world is made of, one element at a time.
